Xdebug - Debugger Tool for PHP

https://xdebug.org/

Xdebug is an extension for PHP, and provides a range of features to improve the PHP development experience.

Vortex comes with Xdebug pre-installed and configured for local development thanks to Lagoon images.

Xdebug is also configured to work in coverage mode, allowing to run tests with code coverage enabled. See PHPUnit for more details.

Usage

Xdebug is disabled by default. Run the following command to enable it:

Ahoy

ahoy debug    # Restart containers with Xdebug enabled.

Docker Compose

XDEBUG_ENABLE=true docker compose up -d cli php nginx   # Restart containers with Xdebug enabled.

Run the following command to disable Xdebug:

Ahoy

ahoy up   # Restart containers with Xdebug disabled.

Docker Compose

docker compose up -d cli php nginx    # Restart containers with Xdebug disabled.

CLI

Running PHP from the command line with Xdebug works the same way as debugging a web page, except that you need to run it from within the container.

Note that some commands, like drush, may disable Xdebug by default for performance reasons. You may need to explicitly enable it by providing --xdebug flag to drush command. Check the documentation of the command you are trying to run for more details.

IDE configuration

PhpStorm

By default, PhpStorm is configured to automatically interrupt on incoming unmapped debug connections when Start listening for PHP Debug Connections button (the one with a little bug) is activated. When interrupted, PhpStorm will ask you to map the incoming connection to a project.

In order to use Xdebug on the project for the first time, you need to follow these steps (assuming you already have a fully working site):

1. Install Xdebug helper extension for your browser:

   • Chrome Xdebug Helper by JetBrains extension.
   • Firefox Xdebug Helper by JetBrains extension.
   • Edge Xdebug Helper by JetBrains add-on.

2. Enable Xdebug in your browser (see instructions for your extension/add-on).

3. Set a breakpoint in your IDE. index.php in your web root is a good place to start.

4. Run ahoy debug or XDEBUG_ENABLE=true docker compose up -d cli php nginx to enable Xdebug.

5. Refresh the page in your browser.

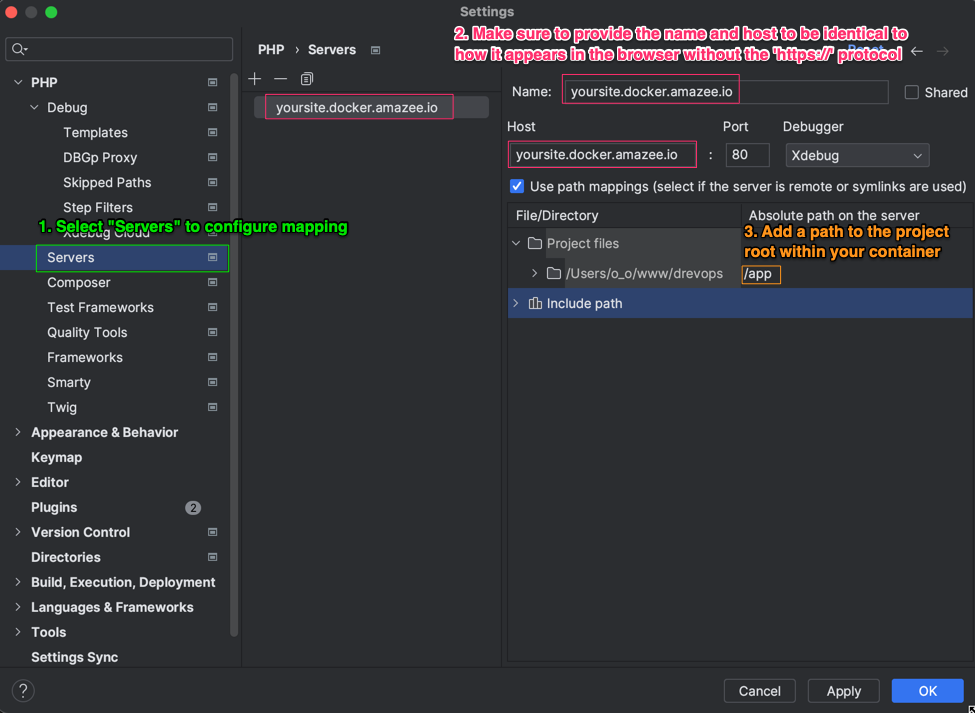

6. PhpStorm will stop on your breakpoint and will ask you to map the incoming connection to directory in your project. This is because the code runs in the container, which qualifies as a remote server. You need to "tell" Xdebug where to find the code on your local machine that corresponds to the code running in the container. You would need to do it once and PhpStorm will remember the mapping.

For more information see the following resources:

• https://www.jetbrains.com/help/phpstorm/configuring-xdebug.html#debugging-with-phpstorm
• https://docs.lagoon.sh/using-lagoon-advanced/setting-up-xdebug-with-lagoon/

Tips and tricks

Once your first Xdebug session is set up, you can adjust some of the Debug configurations in the PhpStorm IDE to make your life easier:

• Disable the following options:
  • Break at first line in PHP scripts
  • Force break at first line when no path mapping specified
  • Force break at first line when a script is outside the project
• Increase the number in Max. simultaneous connections to 5 or more. This will prevent hidden debug session being "stuck" without being visible in the IDE.
